PLC Control System Corrugated Roll Forming Machine for Mgo / Fiber Glass Mesh Raw Material

Name: PLC Control System Corrugated Roll Forming Machine for Mgo Fiber Glass Mesh Raw Material
Brand: chuangxin
Price: 1 USD

Wholesale PLC Control System Corrugated Roll Forming Machine for Mgo / Fiber Glass Mesh Raw Material from china suppliers

Brand Name : chuangxin

Model Number : XD-A

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 Sets per year

Delivery Time : 30 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : Building Moulding Board machine

Production capacity : 1000 Sheets

texture of material : steel materials

Warranty : 1 years

Automatic grade : Automatic

raw material : Mgo,mgcl,fiber glass mesh

Standard : CE

type : free standing

Contact Now

PLC Control System Wall Panel Manufacturing Equipment for Mgo / Fiber Glass Mesh Raw Material

Automatic Roof and Wall Panel Making Machine,panel making machine

Product Description

Automatic Roof And Wall Panel Making Machine

Specifications

size:6.5*1..3*1.5m
weight:3.5t
control system:automatic PLC control system

Main Forming Machine Technical Pamameter:

machine size	6500mm1300mm1500mm
Feeding width	1000mm
Equipment weight	3.5T
Material of shaft	45#steel adjustable treatment
Out diameter of shaft	φ70mm
Material of roller	Cr12, quenched treatment HRC58-60°C
Number of forming rollers	Down for 840: 11 rows Up for 900:9 rows
Main frame	300 H steel
Thickness of medium plate	16mm
Transportation system	Chain transportation
Thickness of chain	1 inch
Main motor power	3 KW
Bearing	6213
Gear box	150*150
Forming speed	8-12m/min
Rolling thickness	0.3-0.8mm

Hydraulic Shearing System:

Material of blade	Cr12,heat treatment 60-62°C
Shearing system	It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 4kw Hydraulic oil :40#

Electrical System:

Screen display

5.7 inches touch screen

Main computer control cabinet

It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand is TaiWan"taida"
The seller should provide Chinese and English language screen.

Company Information

Our factory is specialized in manufacturing color steel forming machinery,C&Z purlin machine,archaic glazed tile forming machine,steel structural floor panel roll forming machine,sandwich panel roll forming machine,highway guardrail forming machine and other cold roll forming machines,crimp machine,curved machine.

Our Services

1) Pre-sale service:

Freely provide project designing, process designing, choosing suitable equipment for you.

2) Medium-sales service:

Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3) After-sales service:

We sent engineer to the scene to guide installation, debugging and training operators. PLC Control System Corrugated Roll Forming Machine for Mgo / Fiber Glass Mesh Raw Material

PLC Control System Corrugated Roll Forming Machine for Mgo / Fiber Glass Mesh Raw Material

Product Tags:

building material making machinery

wall panel equipment

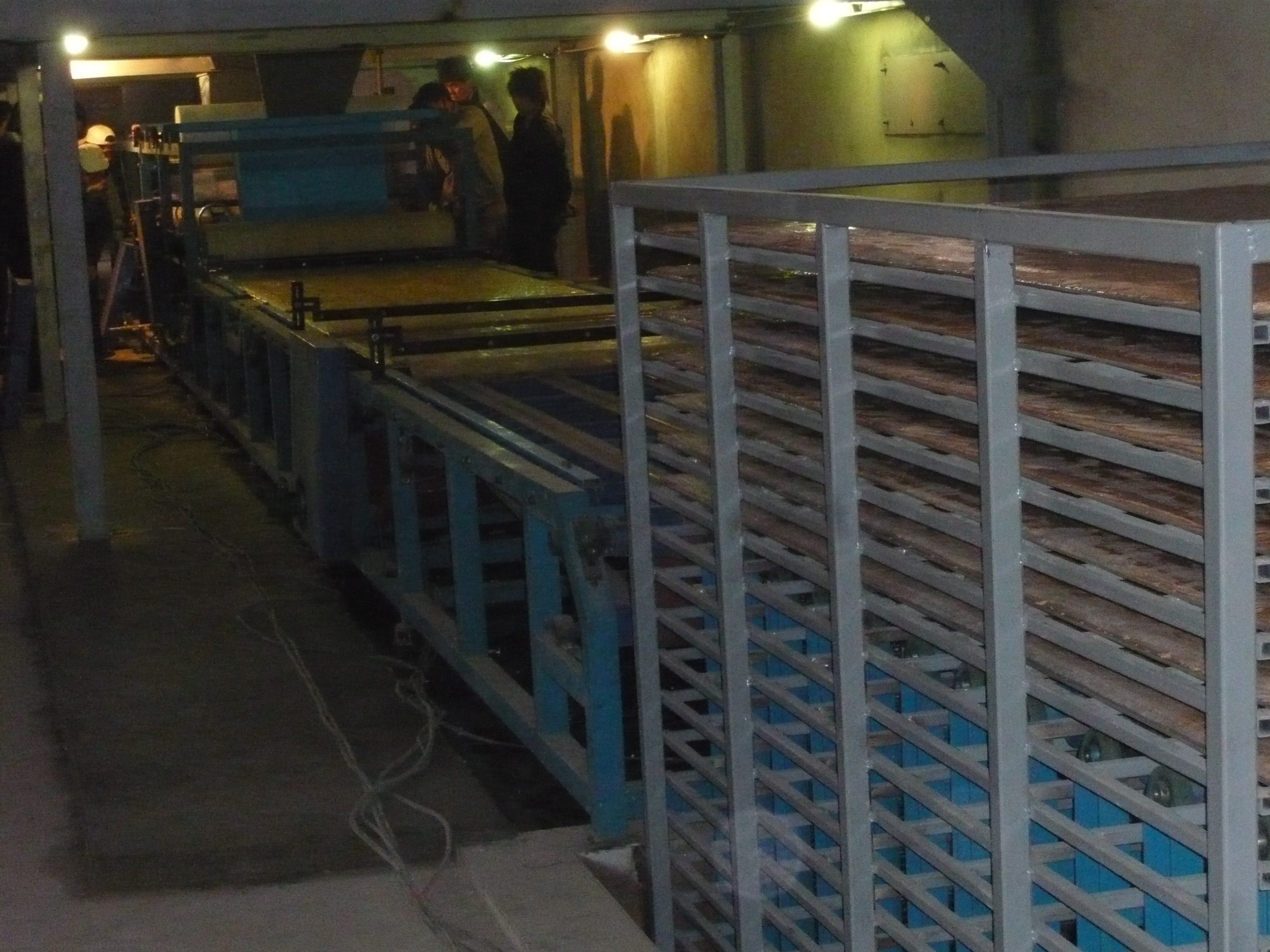

PLC Control System Corrugated Roll Forming Machine for Mgo / Fiber Glass Mesh Raw Material Images
